| 是否进口：否 | 品牌：SQUARE-D | 型号：HU363 |
| 3C额定电压范围：440V及以下 | 系列：HU系列 | 约定发热电流：100 |
| 极数：3 | 额定电流：100A | 额定电压：600V |
| 峰值耐受电流：100A | 额定频率：50-60HZ |

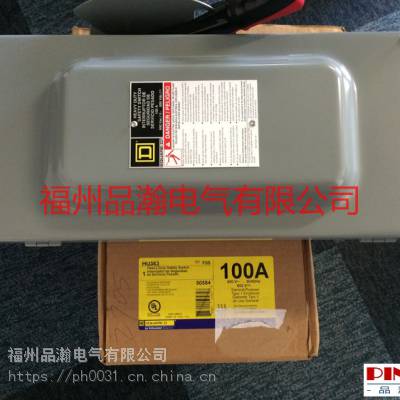

HU363--Safety switch, heavy duty, non fusible, 100A, 3 poles, 100 hp, 600 VAC/DC,
详情咨询13375001090陈工
Product
Single Throw Safety Switch
Duty Rating
Heavy duty
device application
Heavy application
Disconnect Type
Non-fusible disconnect
Factory Installed Neutral
None
Phase
3 phase
Number of Poles
3
Current Rating
100 A
Voltage Rating
600 V AC/DC
Enclosure Rating
NEMA 1 steel
Maximum Horse Power Rating
20 hp 240 V at AC 50-60 Hz for 1 phase conforming to NEC 430.52
40 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52
40 hp 480 V at AC 50-60 Hz for 1 phase conforming to NEC 430.52
75 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52
40 hp 600 V at AC 50-60 Hz for 1 phase conforming to NEC 430.52
100 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52
20 hp 250 V at DC
50 hp 600 V at DC
Complementary
Mounting Type
Surface
Electrical Connection
Lugs
wiring configuration
3-wire
Wire Size
AWG 12...AWG 1/0 aluminium
AWG 14...AWG 1/0 copper
tightening torque
50 lbf.in (5.65 N.m) (AWG 1...AWG 3/0)
45 lbf.in (5.08 N.m) (AWG 6...AWG 4)
40 lbf.in (4.52 N.m) 0.01 in? (8.367 mm?) (AWG 8)
35 lbf.in (3.95 N.m) 0.00…0.01 in? (2.06…5.261 mm?) (AWG 14...AWG 10)
